Best Semiconductor Laser Technology Innovation Award | 976nm 650W Lightweight Pump Module
09/20
2024
Recently, the Vico Cup·OFweek 2024 Laser Industry Annual Awards Ceremony was held in Shenzhen. After multiple rounds of evaluation by an expert jury, industry user online voting, and senior industry editors, Changguang Huaxin stood out from nearly a hundred participating projects. 650W 220μm 976nm Wavelength-Locked Lightweight Fiber-Coupled Module Awarded the Best Semiconductor Laser Technology Innovation Award!
High-performance fiber lasers impose higher requirements on the specifications and reliability of pump source modules. Therefore, developing fiber-coupled modules with high electro-optical efficiency, low temperature drift, wavelength locking, lightweight design, strong environmental adaptability, and efficient heat dissipation is the mainstream demand in the research market.
Based on independently developed high-brightness, high-efficiency single-bar chips, Changguang Huaxin utilizes external cavity feedback wavelength locking, high-reliability optical packaging, high-precision beam shaping, high-density beam combining, and high-efficiency fiber coupling technologies, combined with a self-developed fully automatic production line for research fiber-coupled modules Active Alignment, to develop the 650W 220μm 976nm wavelength-locked lightweight fiber-coupled module.
-
Using self-developed 976nm chip

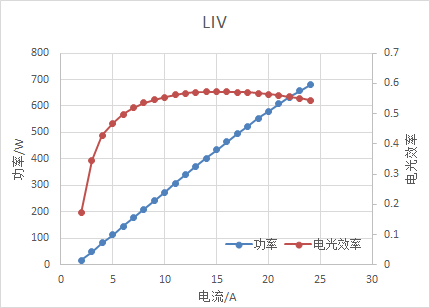

LIV Curve
This product uses Changguang Huaxin's self-developed 976nm single-bar chip, ensuring high brightness and high power laser output. Through optical packaging, it achieves an output power of 650W, electro-optical efficiency ≥54%, NA <0.18 (95% energy), ensuring the module's performance advantages.
-
Wide Temperature Wavelength Locking

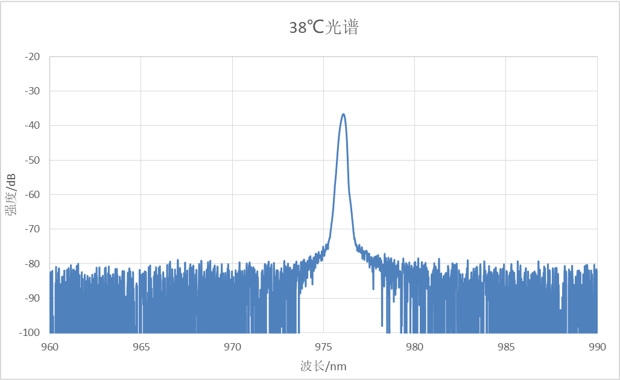

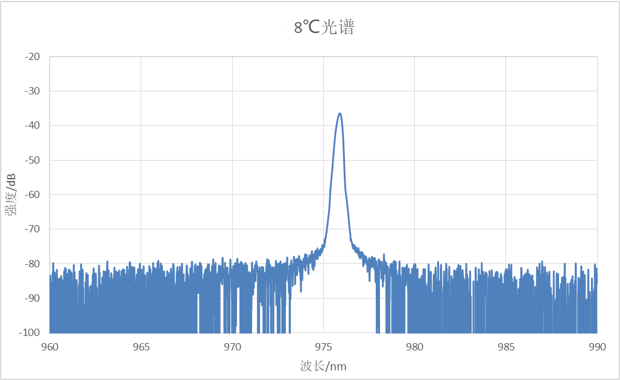

8℃ Spectral Curve 38℃ Spectral Curve
Wavelength locking can be achieved within the temperature range of 8℃~38℃, with wavelength drift ≤0.01nm/℃ and high side mode suppression ratio ≥30dB.
-
Lightweight Design

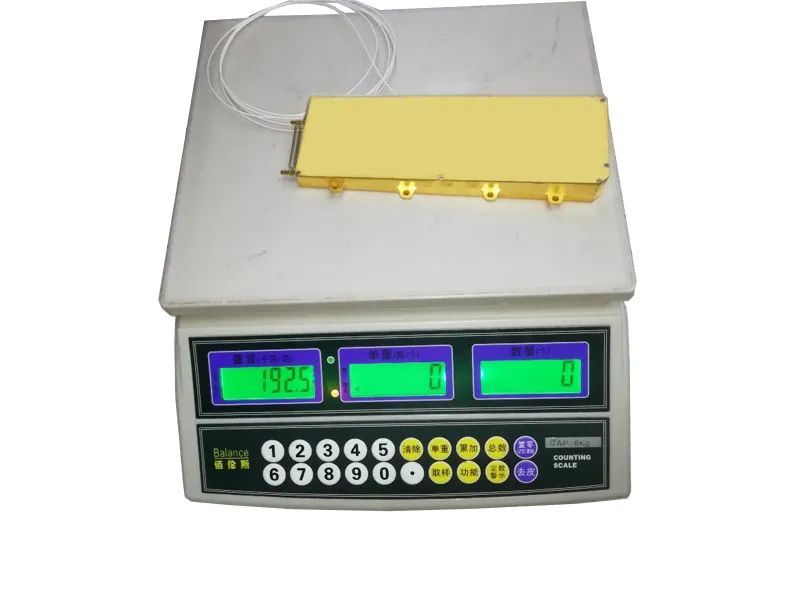

Through optimized tube shell structure design and the use of new lightweight high thermal conductivity materials, the module achieves a single module weight of 192.5g and a mass-to-power ratio <0.3g/W while ensuring heat dissipation and structural strength.
-

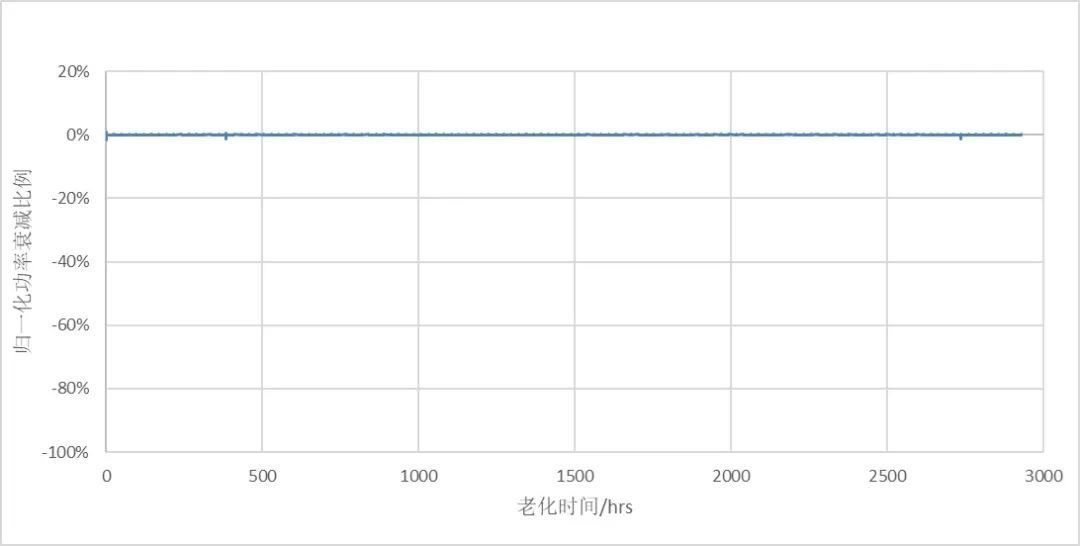

Long Lifespan
Through 3000 hours of long-term lifespan testing, no power attenuation or chip failure occurred, meeting the stringent pump source lifespan requirements of the research market, ensuring stability and reliability.
Live Broadcast Preview
With the development of fiber lasers and solid-state lasers in industrial material processing, new energy, handheld welding, and brittle material processing, the segmented application market has put forward new technical requirements for lasers and their core components - pump sources.
To address common pain points in practical applications, Changguang Huaxin provides pump source solutions tailored to different applications.
On September 3rd at 19:30, Changguang Huaxin's senior product manager for fiber-coupled modules, Zhou Jun, will share "Pump Solutions for Different Applications." You are welcome to make a reservation to watch!
